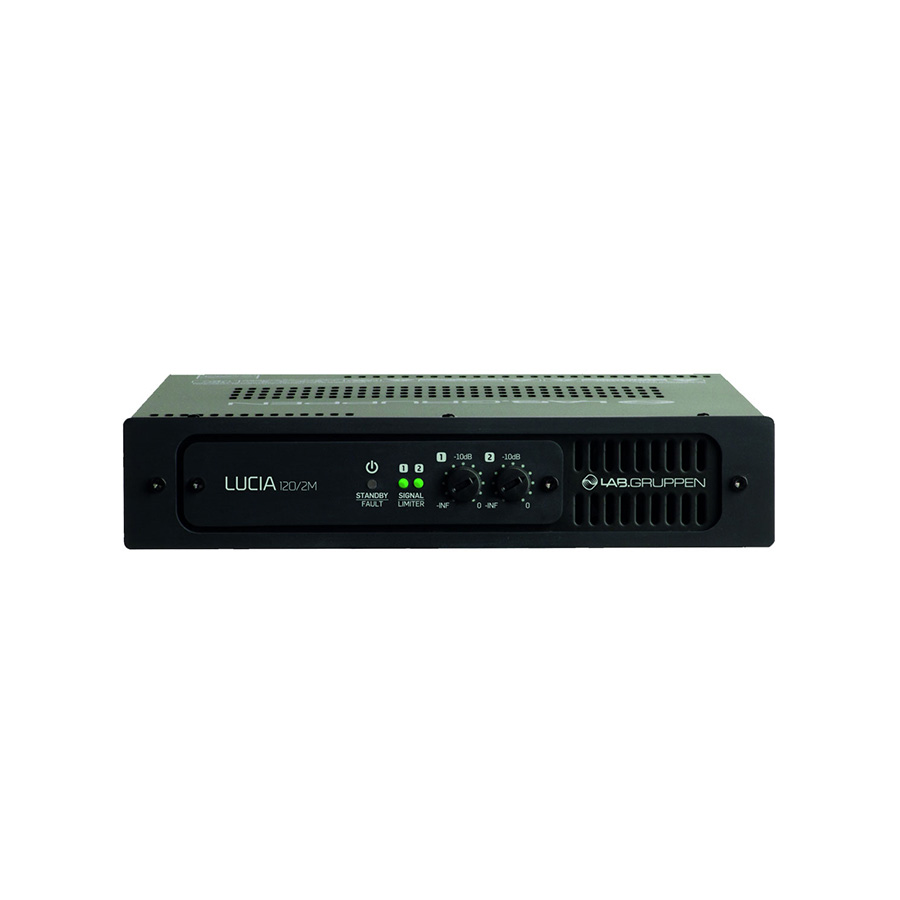

LAB GRUPPEN LUCIA 120/2M Power Amplifier 2×60 watt
เครื่องขยายเสียง LAB GRUPPEN LUCIA 120/2M,Incorporates Ease Of Install With 2 x 60 W into 8, 4 or 2 ohms, 4 x 4 mix matrix, Automatic Dynamic Loudness Contouring, Per channel presets for high-pass filter, parametric EQ, delay and look-ahead limiter
LUCIA 120/2M has been designed and engineered for quick installation and easy setup. The supplied wall-mount bracket enables discreet on-wall location (such as behind video displays), but the ultra-compact form factor also allows easy placement virtually anyplace whether next to a projector or integrated into a reception counter, podium & lectern or bar area.

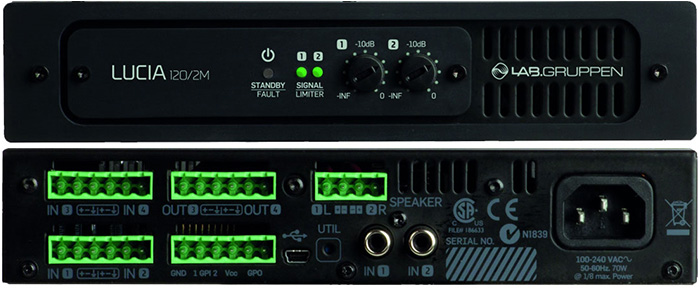

All input and output connections are on Euroblock screw terminals (with parallel unbalanced RCA connectors), and level setting is available on front-panel potentiometers. Advanced circuitry protects the amplifier and connected loudspeakers from potential damage caused by clipping, thermal overload, or extreme low line voltage.
The LUCIA 120/2M incorporates a digital front end with a 4 x 4 Mix Matrix and comprehensive DSP features, including proprietary Automatic Dynamic Loudness Contouring (ADLCTM) and a full selection of EQ filters both before and after the matrix – features that eliminate the need for external mixers and processors in many applications, saving time and money.
A software wizard facilitates fast setup, while the advanced editor allows offline configuration of common presets that can be quickly downloaded to multiple units via USB.
Features:
- Maximum output power across range of loads – 2 x 60 W into 8, 4 or 2 ohms
- Comprehensive DSP features – Per channel presets for high-pass filter, parametric EQ, delay and look-ahead limiter
- Automatic Dynamic Loudness Contouring™ – DSP automatically adapts to optimize performance at any output level
- Optimized presets – Available for specific loudspeaker models
- Auto Load Sense™ – Proprietary auto-set VPL™ (Voltage Peak Limiter) for optimum performance with any connected load
- 4 x 4 mix matrix – Route input signals internally to either or both amplifier channels
- Configuration software – Windows and Mac software wizard for initial set-up, and advanced editor for preset configuration (LUCIA connection via USB)
- RS232 – Remote control and monitoring from third party control solutions
- GPIO – Remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
- Compact form factor – Half-rack, 1U chassis and supplied bracket for discreet on-wall mounting (e.g. behind display screens)
- Efficient Class D amplifier – Patented design for low distortion and minimal heat dissipation
- Fail-safe operation – Comprehensive short circuit, thermal, and under-voltage protection
- Universal power supply – Operates at 100 – 240 V AC (50 or 60 Hz)
- ENERGY STAR® qualified – Conforms to latest specification energy efficiency standard
- Intelligent fan control – Silent operation at idle and at lower output levels
