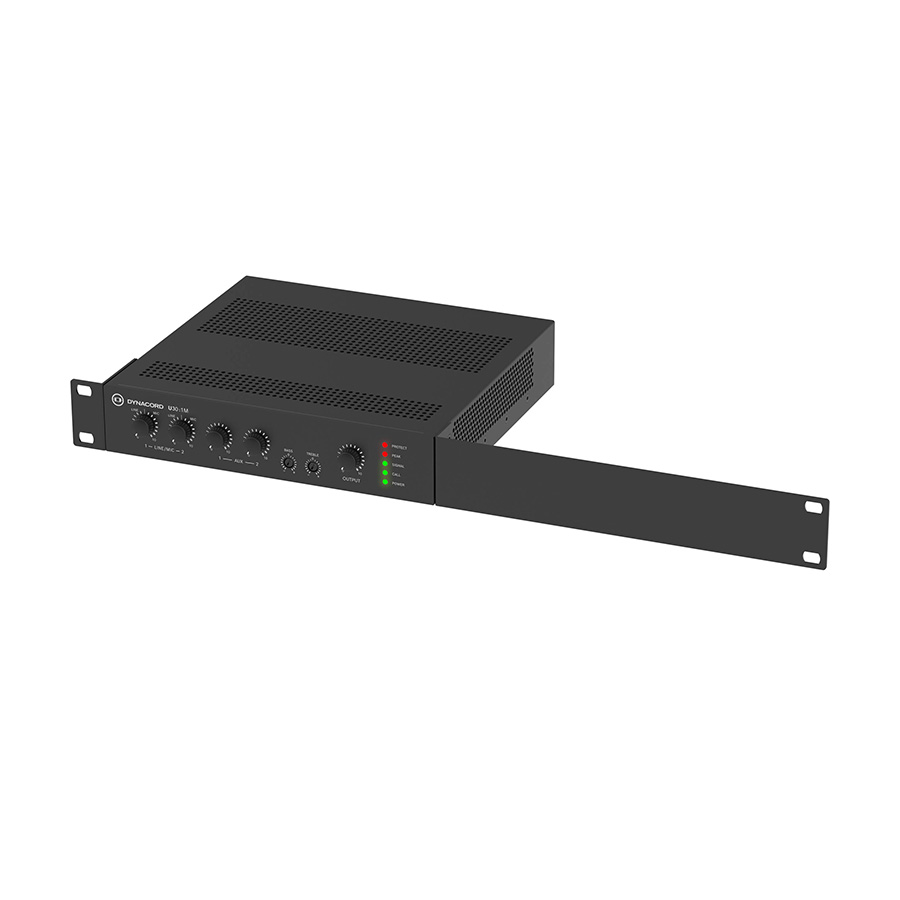

มิกเซอร์แอมป์ Dynacord U30:1M Mixer amplifier 30W

Dynacord

มิกเซอร์แอมป์ Dynacord U30:1M Single-Channel 30 วัตต์ รองรับทั้ง 8 โอมห์ และ 70V, 100V, Class D Amplifier, 4-Inputs 2-Mic and 2-Aux, EMG Override + Contact Override, Voice Over Ducking, Tabletop and Bracket Hardware Included, เหมาะสำหรับระบบเสียงประกาศและ BGM

14,200 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
หมวดหมู่: ป้ายกำกับ: Brand:

คำอธิบาย

Dynacord U30:1M Single-Channel Mixer-Amplifier 30W

มิกเซอร์แอมป์ Dynacord U30:1M Single-Channel 30 วัตต์ รองรับทั้ง 8 โอมห์ และ 70V, 100V, Class D Amplifier, 4-Inputs 2-Mic and 2-Aux, EMG Override + Contact Override, Voice Over Ducking, Tabletop and Bracket Hardware Included, เหมาะสำหรับระบบเสียงประกาศและ BGM

Designed for small- to medium-sized installations, the Dynacord U30:1M is a 30W mixer and amplifier that’s ideal for background music and clear voice announcement applications, making it ideal in bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers.

The 1/2 rack (1 RU) enclosure offers multiple installation possibilities, including desktop, single and dual rackmount configurations, and an under-counter installation bracket. The U30:1M provides premium quality, performance, and unwavering reliability.

Features:

  • Amplifer with full power output supporting 4Ω, 8Ω, 70 V, and 100 V
  • 2 aux and 2 mic/line inputs with +48V support
  • EMG override input for clear critical messaging
  • Voice-over ducking of background music for announcements
  • 2-tone chime for alerts
  • Selectable 120Hz highpass filters to eliminate unwanted low-frequency noise
  • Space-saving compact 0.5RU design for versatile installation options
  • Remote power Off (Standby) for enhanced energy efficiency

Specifications

Mains power supply
Voltage 100 VAC – 240 VAC, 50/60 Hz
Power 100 VA
Consumption Standby (Remote OFF active) 0.60 W
Idle mode 6 W / 6 W
Remote power (ON/OFF Stand by) 2-pin, Eurostyle, contact closure
Performance
Frequency response, -3 dB ref. 1 kHz
Any input to output 70 Hz — 22 kHz
Any input to LINE output <10 Hz — 65 kHz
Distortion <1% @rated output power, 1 kHz
Output stage topology Class D
Equalization
Bass shelving ±12 dB / 150 Hz — 3 dB (100 Hz)
Treble shelving ±12 dB / 5 kHz — 3 dB (10 kHz)
Filter
LO-CUT permanently f=70 Hz, 12 dB/oct.
LO-CUT switchable, can be activated f=120 Hz, 12 dB/oct.
General
Front status LEDs
Protect (Red) Protection, short circuit
Peak (Red) 1 dB before clip (input and output)
Signal (Green) Input and output signal
Call (Green) EMG / priority trigger / Vox input active
Power (Green) Power on condition
DIP switches EMG (HiZ/LowZ), Two-tone Chime (ON/OFF), HPF (120 Hz), VOX (ON/OFF), Phantom power (+48 V/OFF) Output (HiZ/LowZ), Amp mode (70 V/100 V; 4Ω/8Ω)
Protections
Amplifier Audio limiters, high temperature, DC, HF, short circuit, over current protection
Switching mode power supply (µPC controlled) Mains over/under voltage protection, inrush current limiter, mains over current, high temperature
Remote power OFF Contact closure
Inputs
Number of inputs 2 mic/line, 2 aux (+EMG)
Sensitivity with all level controls in max. position
MIC / Call station -68 dBu (300 µV)
AUX (only L or R) -22 dBu (60 mV)
AUX (Stereo) (L and R) -28 dBu (30 mV)
Maximum input level
MIC / Call station +8 dBu
Input impedances
MIC / Call station 10 kΩ
AUX 4.7 kΩ
EMG (Line) >15 kΩ
EMG (HiZ) >470 kΩ
LINE (L and R) 75 Ω
Noise, MIC input to output, Aweighted, (HiZ 100 V) -58 dBu
Input 1
Type Mic/Line, contact override with chime
Connector 3-pin XLR, balanced / 5-pin Eurostyle, balanced (3 pin for input, 2 pin for trigger
Dynamic range 61 dB (Mic gain min — max)
S/N (A-weighted) ≥98 dB
Phantom power supply, switchable 48 V DC
Input 2
Type Mic/Line, VOX ducker override
Connector 3-pin XLR, balanced
VOX Ducking Ducking control 0 dB — -45 dB
VOX Threshold -60dBu — +8 dBu, adjustable
Dynamic range 61 dB (Mic gain min — max)
S/N (A-weighted) ≥98 dB
Phantom power supply, switchable 48 V DC
Input 3
Type Line
Connector RCA (chinch), stereo converted to mono, unbalanced
S/N (A-weighted) ≥98 dB
Input 4
Type Line
Connector RCA (chinch), stereo converted to mono, unbalanced
S/N (A-weighted) ≥98 dB
EMG Input
Type Line; 100 V
Connector 2-pin, balanced
S/N (A-weighted) ≥98 dB
Loudspeaker output
Connector 4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ)
Rated output power 30 W
Max output voltage, 1 kHz, THD=0.5%, no load 4 Ω 8 Ω 70 V 100 V
12 VRMS 16 VRMS 87 VRMS 118 VRMS
Mechanical
Enclosure
IEC protection class Class I (grounded)
Dimensions (HxWxD), without acessories 44.2 mm x 218 mm x 217.7 mm
(1.74 in x 8.6 in x 8.57 in)
Color in RAL RAL 9017 Traffic black
Net weight (without accessories) 2.26 kg
(4.98 lb)
Net weight (with accessories) 2.72 kg
(5.99 lb)
Shipping weight 3.10 kg
(6.83 lb)
Mounting Stand-alone; 19″ rack; rack side-byside; half 19″ rack; table-top; undertable
Environmental
Climatic conditions
Cooling concept Fanless (convection cooling)
Operating temperature -5°C — 45°C
(23°F — 113°F)
Storage temperature -40°C — 70°C
(-40°F —158°F)

Downloads

ดาวน์โหลด Data Sheet Dynacord U30:1
