อุปกรณ์ปรับแต่งเสียง WORK INTEGRA 8S Digital Audio Processor

WORK PRO

อุปกรณ์ปรับแต่งสัญญาณเสียง WORK INTEGRA 8S, 8 X 8 analog channels, Filtrer, EQ, Delay, Limiter, Programmable DSP architecture per channel, Customizable control software and APP, Audio processor IC 24 bit / 48kHz Shark 450 MHz

49,500 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
หมวดหมู่: ป้ายกำกับ: Brand:

คำอธิบาย

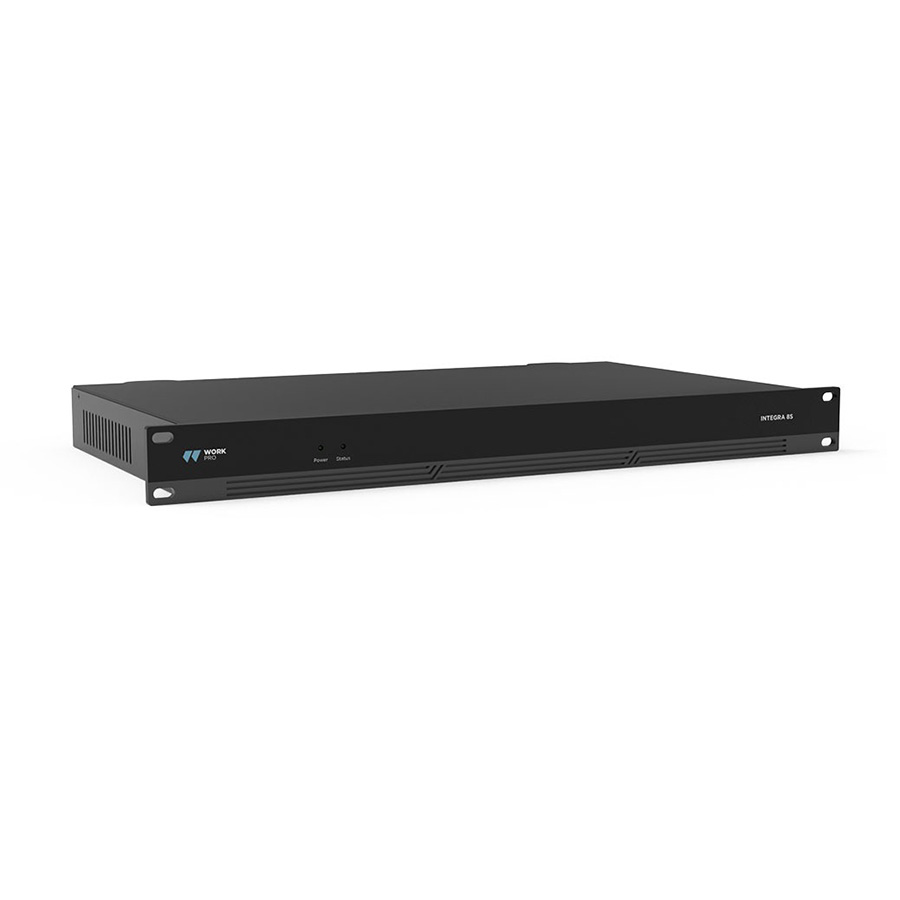

WORK INTEGRA 8S Digital Audio Matrix 8 X 8 DSP

อุปกรณ์ปรับแต่งสัญญาณเสียง WORK INTEGRA 8S, 8 X 8 analog channels, Filtrer, EQ, Delay, Limiter, Programmable DSP architecture per channel, Customizable control software and APP, Audio processor IC 24 bit / 48kHz Shark 450 MHz

Introducing the INTEGRA 8S digital matrix, where control and creativity have never been easier. Our free and powerful native management software puts the power in your hands. With configurable per-channel DSP architecture, adjust gain, EQ, compression, limiting and more, all with one-click ease.

The visual matrix and auto-mix module give you unparalleled flexibility. Need more? Filter bank on the inputs, independent compression/limiting on each output and an APP for mobile devices to control everything from your pocket. The INTEGRA Series: Are you ready to take your facility’s audio to the next level.

Features:

  • 8 X 8 analog channels
  • Programmable DSP architecture per channel
  • Customizable control software and APP
  • Audio processor IC 24 bit / 48kHz Shark 450 MHz

Specifications

Audio input 8 Analog Balanced (Euroblock)
Processing per input channel Expander, Compressor, Auto Gain Compensation, EQ 8 bands, Feedback
Audio Output 8 Analog Balanced (Euroblock)
Output channel processing Filtrer, EQ, Delay, Limiter
THD+N 0.003%@4dBu
Maximum output level +18dBu
Sampling frecuency 24 bit / 48 kHz
Filter types Bessel, Butterworth, Linkwitz-riley
No. Memories 16 Presets
Control protocols RS232, RS485, UDP, TCP, 4 GPIOs
Network Ports RJ45
Ethernet UTP
Power supply 230V 50Hz
Consumption <40W
Dimensions 482 x 260 x 45mm
Weight 3 Kg
Functions Signal matrix, Automix, 3 filters per output, Polarity inversion,
Noise gate, Compressor, Delay, 5 types of EQ in 8 in/OUT parameters,
Sine wave generator and Pink and White noise,
Acoustic Echo Cancellation and Automatic Noise Supressor
Control software Integra DSP for PC and Integra REMOTE for Tablet/Smartphone

Downloads

ดาวน์โหลด Data Sheet WORK INTEGRA 8S
