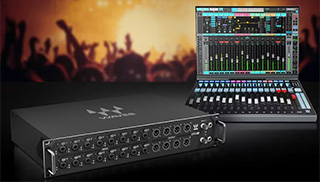

WAVES Iconic 16 16-In /12-Out Soundgrid Stagebox
ดิจิตอลสเตจบ๊อก Waves Ionic 16 Integrates with eMotion LV1 Live Mixer, 16-in/12-out SoundGrid Stagebox with 16 Preamps, 2 Headphone Outputs, and AES I/O, Analog-Input Impedance Selector,
Up to 96 kHz AD / DA Conversion
Add 16 high-performance, Waves Signature mic preamps and 12 line outputs to your SoundGrid network with the Waves Ionic 16, a digital Soundgrid stagebox housed in a rugged 2 RU rack-mountable chassis.
With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the Ionic 16 integrates easily into your stage- or studio-based setup. Its redundant PSU external input enables the stagebox to continue working even if power to primary power supply fails.
Ionic 16 provides 16 channels of mic/line input on XLR-1/4″ combo connectors and 12-line level outputs on XLR connectors. There are also XLR AES3 input and output connectors, and two headphone jacks. Most I/O connections are from the front panel.
The stagebox features Waves Signature Preamps: fast response, maximum headroom, up to 60 dB of gain, 48V phantom power, and fully discrete analog circuits. A switchable harmonic enhancer adds analog warmth and harmonics without compromising punch or clarity. Preamp impedance is selectable between 2 and 7 kilohms.
Features:
- SoundGrid-based stagebox is tailor-made for eMotion LV1 systems
- 16 Waves Signature Preamps (WSP) boast pristine, top-tier sound quality
- Preamps can be bypassed for a neutral sound with loads of headroom
- Switchable 2k ohm/7k ohm preamp impedance ensures great sound with any source material
- 12 hyper-transparent analog outputs can deliver levels up to +24dBu with a flat frequency response
- Outputs can be toggled to +18dBu for destinations that require colder inputs
- Analog I/O is reinforced by industry-leading, 32-bit/96kHz conversion
- 2 headphone outputs, each with an individual volume knob, make monitoring easy
- Each headphone output can be set to monitor a different source
- Stereo AES I/O with built-in sample rate conversion
- Optional external power supply input for adding bulletproof redundancy to your system (2nd power supply sold separately)
