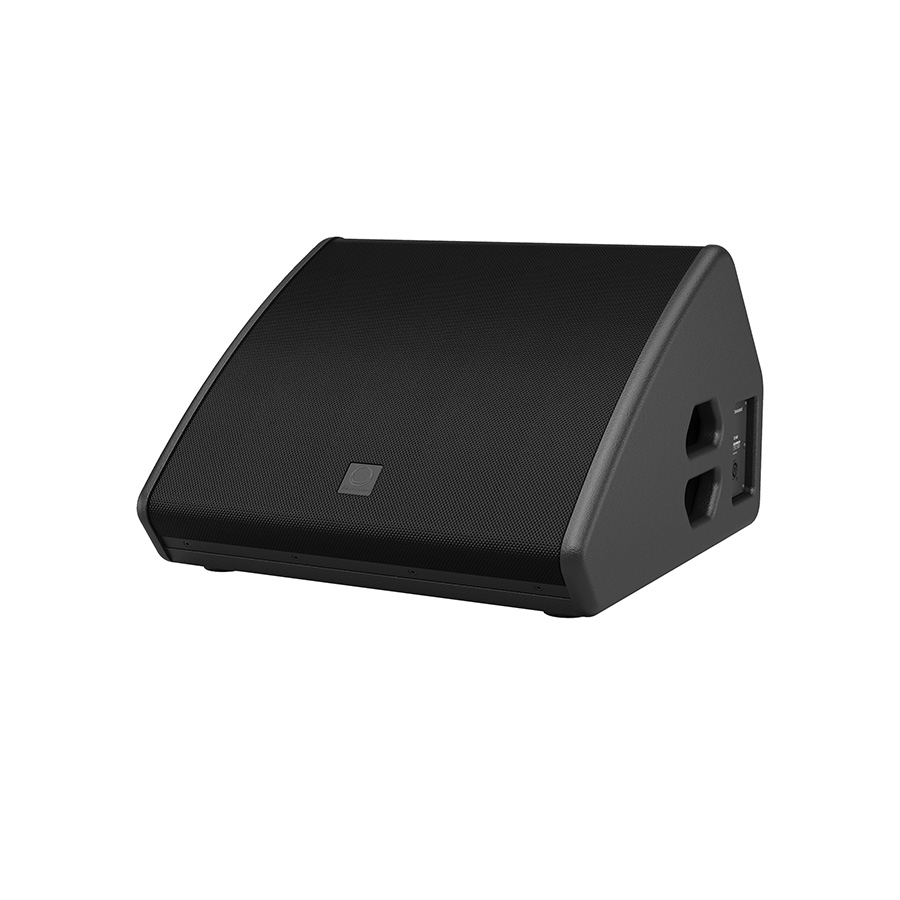

ลำโพงมอนิเตอร์เวที Turbosound TQ14M Stage Monitor 14″

ลำโพงมอนิเตอร์เวที Turbosound TQ14M เป็นตู้ลำโพงแบบ Coaxial 2 ทาง Full Range, ขนาดดอกลำโพง 14 นิ้ว neodymium low frequency, เสียงแหลม Titanium dome 1.4″ exit, 3″ voice coil, ทนกำลังขับ 430 W continuous, 1920 W peak, 60° H x 40° V dispersion, Impedance 8 Ω

coming soon.....

สอบถามและสั่งซื้อสินค้า Order FAQS

หมวดหมู่: ลำโพงแบบไม่มีกำลังขยายในตัว ป้ายกำกับ: Turbosound Brand: Turbosound

คำอธิบาย

Turbosound TQ14M Coaxial 2-Way Stage Monitor 14″ 1920W

The 2-way full range TQ14M is a switchable passive/bi-amp 1,920 Watt 14″ loudspeaker system that is ideally suited for all professional stage monitor reinforcement applications. The TQ14M is designed to work in conjunction with Lab Gruppen PLM+ and IPX amplification and TQ14M provides optimal performance for stage monitoring.

Features:

2 way full range loudspeaker for Tour and Live Sound applications
480 Watts continuous, 1,920 Watts peak power
Carbon fibre loaded 14″ neodymium motor low frequency driver
Titanium dome 1.4″ exit, 3″ voice coil, neodymium motor compression driver
Low profile design to maximise audience sight lines
Low distortion waveguide provides 60° H x 40° V dispersion
Switchable passive/bi-amp operation for flexibility of use
15 mm (5/8″) plywood enclosure
IP44 dust and water ingress protection
Weather-resistant enclosure construction with durable semi matte black paint finish
Cloth covered powder coated perforated steel mesh grille
Durable handle for easy lifting and carrying
Industry standard 4-pole twist-lock speaker connectors for reliable long life operation

Specifications

Frequency response ( +/-3 dB)*	60 Hz – 18 kHz
Frequency response (-10 dB)*	55 Hz – 20 kHz
Nominal dispersion (@ -6 dB points)	40 H x 60 V
Power handling (IEC)	LF: 400 W continuous HF: 80 W continuous FR: 480 W continuous
Peak	LF: 1600 W peak HF: 320 W peak FR: 1920 W peak
Sensitivity (1 W @ 1 m)**	F: 99 db, HF:106 dB
Maximum SPL***	137 dB (passive mode) 138 dB (bi-amp mode)
Impedance	LF: 8 Ω / HF: 8 Ω FR: 8 Ω
Components	1 x 13.5″ (340 mm) Co-axial LF driver 1 x 1.4″ (36 mm) / 3″ (72 mm) Voice coil HF compression driver

Enclosure

Connectors	2 x Industry-standard 4-pole twist-lock speaker connectors
Wiring	Passive: Pins 1+ / 1- input, pins 2+ / 2- link Bi-Amp: Pins 1+ / 1- LF input / link, pins 2+ / 2- HF input / link
Dimensions HWD	359 x 530 x 563 mm (14.13 x 20.86 x 22.16″)
Net weight	20.5 kg (45.2lbs)
Construction	12 mm and 15 mm (1/2″ and 5/8″) birch plywood
Finish	PU Semi matt black paint
Grille	Powder coated perforated steel, cloth wrapped
IP rating	IP44
UV rating	4-5 (ASTM G155-13)
Pole Mount	Yes, (single, no tilt)
