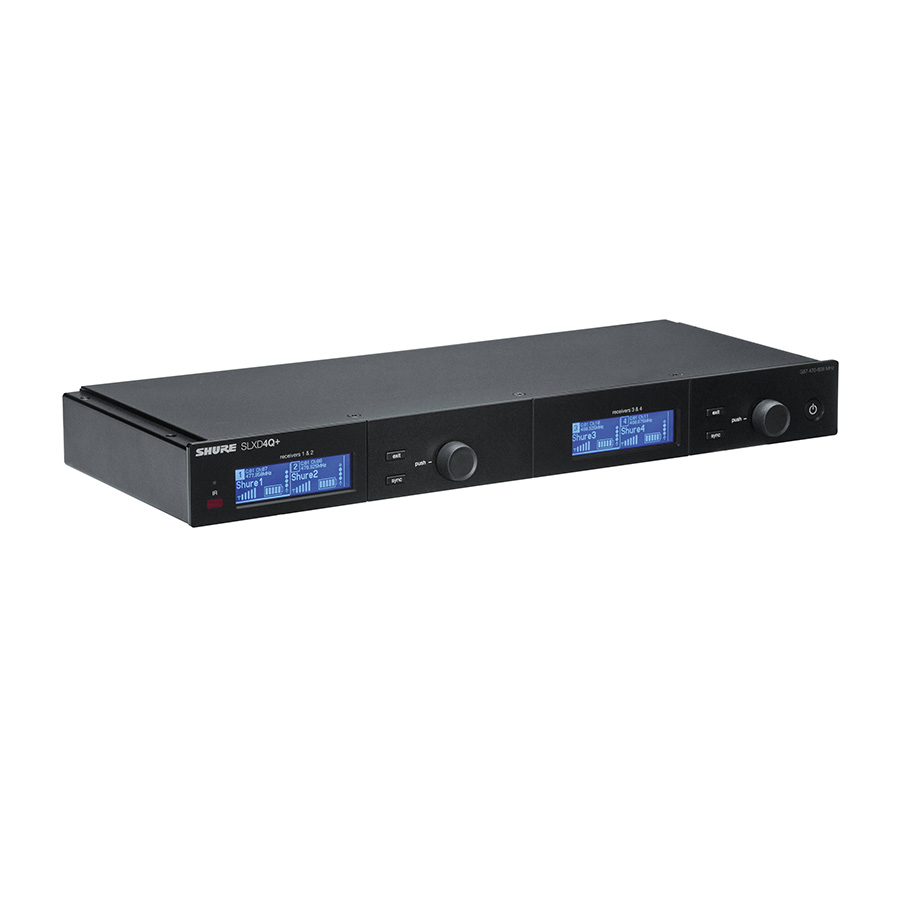

เครื่องรับสัญญาณ SHURE SLXD4Q+ Quad Wireless Receiver

SHURE

เครื่องรับสัญญาณไมโครโฟนไร้สายแบบ 4 ช่อง Shure SLXD4Q+, 4-ch Rackmount Wireless Receiver with IR Scan and Sync, Digital Predictive Switching, RF Cascading, and Bias Voltage M55 Band (694-703 MHz และ 748-758 MHz) For Small to Medium Venues & Events

Original price was: 162,900 ฿.Current price is: 113,900 ฿.

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
หมวดหมู่: ป้ายกำกับ: Brand:

คำอธิบาย

Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver

เครื่องรับสัญญาณไมโครโฟนไร้สายแบบ 4 ช่อง Shure SLXD4Q+, 4-ch Rackmount Wireless Receiver with IR Scan and Sync, Digital Predictive Switching, RF Cascading, and Bias Voltage M55 Band (694-703 MHz และ 748-758 MHz) For Small to Medium Venues & Events

The SLXD4Q+ Quad Channel Receiver is the best choice for streamlining SLX-D digital wireless performance into a space-saving footprint. Featuring expanded capabilities for confident speech presentation and vocal performance – from lecture halls to live entertainment.

Features:

  • Packs a 4-channel wireless receiver into a space-saving 1U rackmount unit
  • Increases your channel count with minimal impact on your system’s available real estate
  • Wide 138MHz tuning range offers stellar performance in practically any RF environment
  • Internal audio summing allows deployment of all 4 channels regardless of mixer channel availability
  • RF cascading scales up a wireless system using a 2nd SLX-D quad-channel receiver
  • Bias voltage accommodates UA874 active directional antennas without an external power supply
  • 4 XLR and 1/4-in. outputs with 2 Ethernet connections provide ample connectivity
  • Transparent 24-bit digital audio and an extended 20Hz–20kHz frequency range provide high-quality signal resolution
  • Expansive 118dB dynamic range ensures an outstanding SNR
  • Digital predictive switching diversity keeps your signal strong
  • 32 available channels per frequency band in most regions
  • IR scan and synchronization make pairing to an SLX-D transmitter fast and easy
  • Seamless compatibility with a wide array of 3rd-party control devices from AMX, Crestron, and others

Specifications

System
Wireless Technology
Digital UHF
Diversity
Yes, True Diversity
RF Frequency Band
470 to 608 MHz
Number of RF Channel Frequencies
5520
Max Operating Range
328′ / 100 m
Max Transmitters per Band
32
Latency
3.2 ms
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
Yes: Android & iOS
Receiver
Receiver Type
1x Tabletop/Rack-Mountable
Mounting Options
Rackmount (with Included Hardware, 1 U)
Antenna
2x Removable BNC 1/4 Wave (Rear-Mount)
Number of Audio Channels
4
Audio I/O
4x XLR 3-Pin Balanced Mic/Line Output
4x 1/4″ TRS Balanced Output
Network I/O
2x RJ45
USB/Lightning Connectivity
No
Gain Range
18 to +42 dB (1 dB Steps)
Frequency Response
20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Display
LCD (Non-Backlit)
Power Requirements
AC/DC Power Adapter
Power
AC/DC Power Adapter
15 VDC at 0.9 A, Center-Positive (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Environmental Resistance
No
Housing
Metal
Dimensions
15.5 x 6 x 1.7″ / 393 x 152 x 42 mm
Weight
3.9 lb / 1750 g

Downloads

ดาวน์โหลด Data Sheet SHURE SLXD4Q+
