rcf_nx915-sma_active_stage_monitor

ลำโพง RCF NX 915-SMA Active Stage Monitor 15″

RCF

ลำโพงสเต็จมอนิเตอร์บนเวที RCF NX 915-SMA เป็นตู้ลำโพงแบบ Active 2-Way ขนาดดอกลำโพง 15 นิ้ว woofer เสียงแหลมขนาด 1 นิ้ว มีกำลังขยายในตัว 2100W Peak Class-D Amplifier, Advanced DSP with 3 Presets, FiRPHASE Filters for Coherent Sound

90,200 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
หมวดหมู่: ป้ายกำกับ:

คำอธิบาย

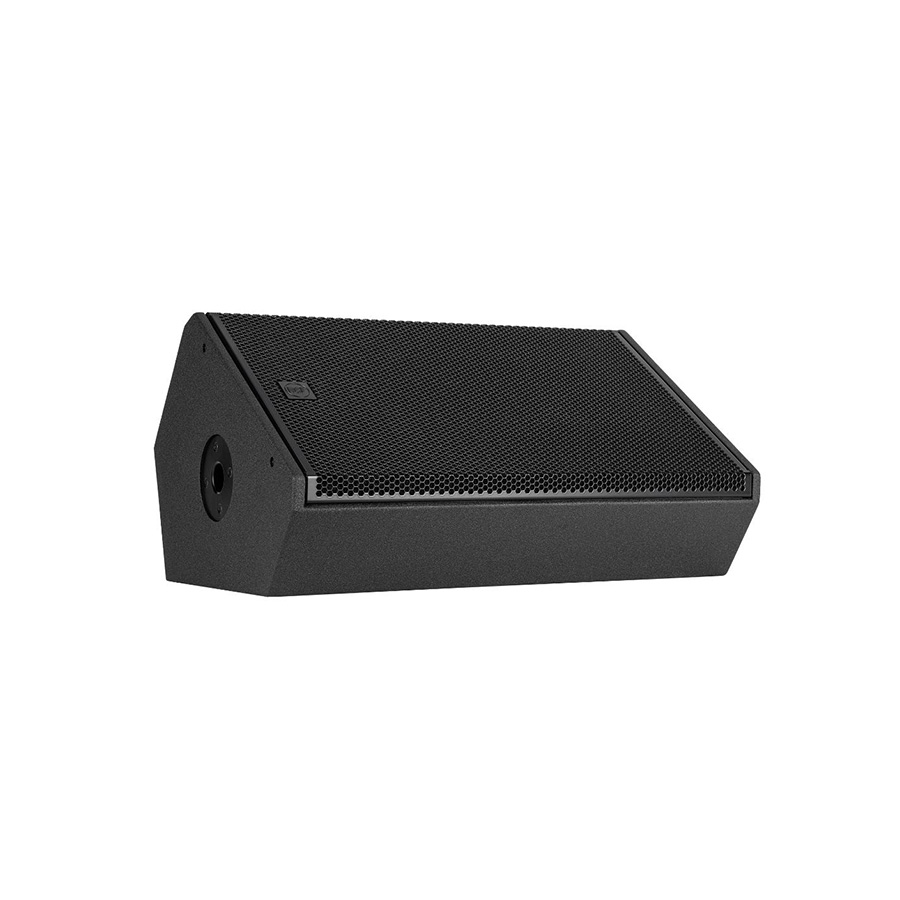

RCF NX 915-SMA 2-Way Active Stage Monitor 15″ 2100W

ลำโพงสเต็จมอนิเตอร์บนเวที RCF NX 915-SMA เป็นตู้ลำโพงแบบ Active 2-Way ขนาดดอกลำโพง 15 นิ้ว woofer เสียงแหลมขนาด 1 นิ้ว มีกำลังขยายในตัว 2100W Peak Class-D Amplifier, Advanced DSP with 3 Presets, FiRPHASE Filters for Coherent Sound

NX 915-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 15” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 131dB SPL of distortion-free sound.

Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 915-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing.

NX 915-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.

Features:

  • Up to 131 dB Sound Pressure Level
  • 2100W Class-D bi-amplification
  • 45-20000 Hz linear frequency response
  • 1.75″ Compression Driver
  • 15″ Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
  • 70ºx100º Constant Directivity Coverage Angle
  • Perfectly tailored for horizontal or vertical deployment

Specifications

Enclosure Type
Bass-Reflex Loudspeaker/Floor Monitor
Total Power Capacity
4200 W Peak
Amplifier Power Rating
LF: 1400 W Peak
HF: 2800 W Peak
Amplifier Class
Class-D
Drivers
HF Driver
1 x 1″ / 25.4 mm Polyimide Compression Driver
HF Voice Coil
1.75″ / 44.45 mm
MF Driver
No
LF Driver
1x 15″ / 381 mm Woofer
LF Voice Coil
2.5″ / 63.5 mm
Magnet
Neodymium
Performance
Frequency Response
45 Hz to 20 kHz
Maximum SPL
131 dB (Peak)
Coverage Angle
100° H x 70° V
Input Sensitivity
+4 dBu to -2 dBu
Protections
RMS, Signal Limiter, Thermal
Connectivity
Audio I/O
1x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Input
1x XLR 3-Pin Male Balanced Thru/Output
Network I/O
No
USB I/O
No
Wireless Connectivity
No
Bluetooth
No
Mobile App Compatible
No
Signal Processing
Crossover
1600 Hz (Internal)
EQ
No
Parametric EQ
No
Semi-Parametric EQ
No
Dynamic Processing
Soft Limiter
Alignment Delay
No
Phase Adjustment
No
Digital Signal Processing
FIR Filter, Venue Settings
Power
AC Input Power
100 to 120 VAC, 60 Hz
AC Power I/O
1x powerCON Input
Power Consumption
300 W
Physical
Color
Black
Mounting
1 x Pole Socket (Bottom)
Handles
1x Side
1x Top
Cooling
Convection, Heat Sink
Construction Material
Plywood, Stainless Steel Grille
Dimensions
27.8 x 17.9 x 14.1″ / 70.6 x 45.5 x 35.8 cm
Weight
38.1 lb / 17.3 kg

Downloads

ดาวน์โหลด Data Sheet RCF NX 915-SMA
