ลดราคา!

ดิจิตอลมิกเซอร์ MIDAS HD96-AIR Lightweight Live Digital Console

Name: ดิจิตอลมิกเซอร์ MIDAS HD96-AIR Lightweight Live Digital Console
Brand: MIDAS
SKU: 83219
Availability: InStock

มิกเซอร์ดิจิตอล MIDAS HD96-AIR Lightweight Live Digital Console with 144 Input Channels, 96 flexi aux outputs, 24 matrices, stereo bus, mono bus, 64-bit floating point, 96 kHz Sample Rate and 21″ Glare Resistant Ergonomic Touch Screen

Original price was: 1,031,000 ฿.Current price is: 879,000 ฿.

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

สอบถามและสั่งซื้อสินค้า Order FAQS

หมวดหมู่: ดิจิตอลมิกเซอร์ ป้ายกำกับ: MIDAS Brand: MIDAS

คำอธิบาย

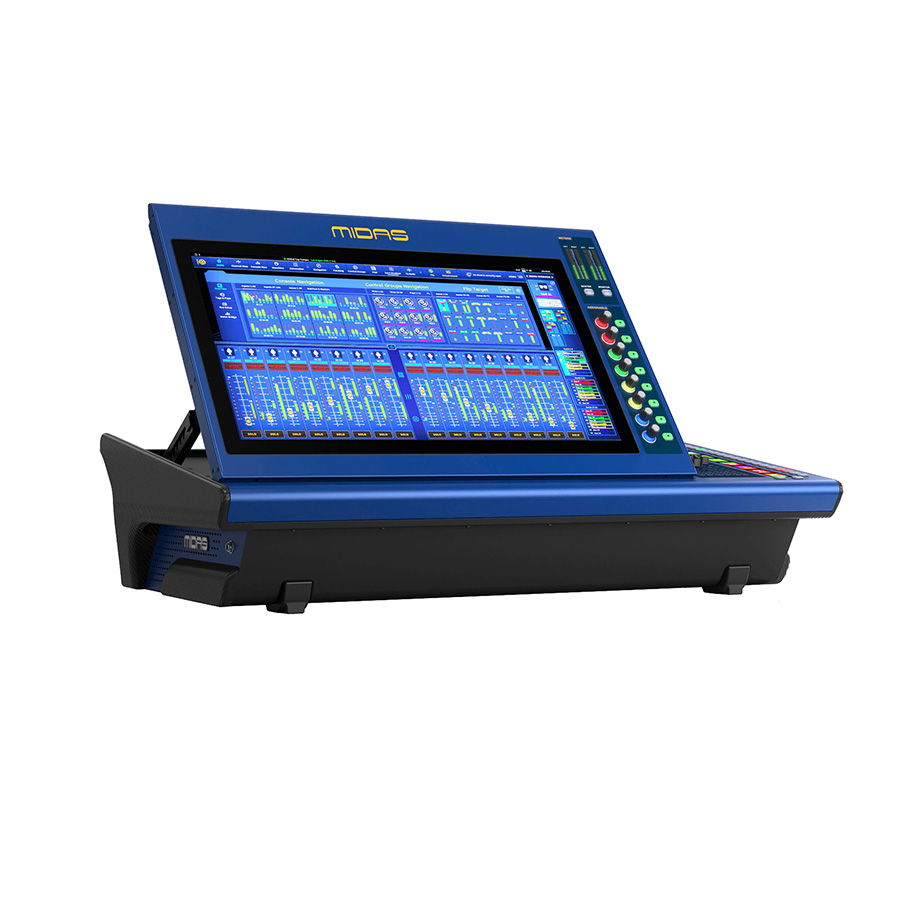

MIDAS HD96-AIR Lightweight Live Digital Console

The HD96-AIR is the latest and highly anticipated addition to the Heritage-D series. This revolutionary lightweight console is unmatched in its class, offering more power and features than any other console of its size. AIR blends innovative technology, portability, and performance.

It boasts 144 simultaneous input channels, a 96 kHz sample rate, and 123 time-aligned and phase-coherent mix buses, offering sound engineers unparalleled control and precision. Its ergonomic 21-inch full-colour TFT display screen features capacitive touch sensing with an advanced multi-gesture user interface. The unit will also include 8 XLR inputs and outputs with award-winning Midas microphone preamplifiers.

The HD96-AIR will further support HyperMAC and AES50 networking, allowing for up to 480 inputs and 480 outputs at a 96 kHz sample rate, and include a dual network bridge format converter with up to 128 bidirectional channels and asynchronous sample rate conversion.

As per the HD96, AIR will also offer 24 VCA (variable control association) groups, 24 POPulation groups, up to 48 assignable 1/3 octave Klark Teknik DN370 graphic equalisers, and up to 24 multi-channel digital signal processing effects engines.

There will be many more additional features built-in, including fully interpolated touch-sensitive controls and dual redundant auto-ranging universal switch-mode power supplies, however full specs will be provided once testing is completed.

Features:

Live performance digital console with up to 144 simultaneous input channels and 96 kHz sample rate
Lightweight console in a flyable package+
123 time-aligned and phase-coherent mix buses
21″ full colour TFT, high-brightness screen with capacitive touch sensing
Advanced and multi-gesture, touchscreen user interface
Award-winning Midas microphone preamplifiers
Dual HyperMAC and AES50 allows up to 480 inputs and outputs at 96 kHz sample rate
Dual network bridge format converter with up to 128 Bidirectional Channels and asynchronous sample rate conversion

Specifications

Processing

Input processing channels	144 flexi channels
Output processing channels	96 flexi aux outputs, 24 matrices, stereo bus, mono bus
Signal processing	64-bit floating point
D/A converter	24-bit, 96 kHz and 128 times oversampling
A/D converter	24-bit, 96 kHz and 128 times oversampling
Sampling frequency	96 kHz
I/O latency (surface input to output)	1.34 ms
Input audio processing	Dual-slope high and low-pass filters True phase filter control 4-band parametric EQ with 3 shelf modes 4-mode creative input compressors Input gates or ducker Insert point on/off with processing order change Direct output with adjustable level and processing pick of point Delay-compensated aux return mode on inputs 5 x tap-off points per send
Output audio processing	Output 4-band parametric EQ with shelving/HP/LP options 4-mode creative output dynamics Insert point on/off with processing order change Direct input with adjustable level and processing tap-off point
Mixing control assistance	12 x talk groups 12 x mute groups 24 x surface POPulation groups 24 x VCA associated population groupsฅ Scene snapshot automation

Connectors

Midas microphone preamplifier	8 x XLR balanced
Balanced outputs	8 x XLR balanced
Talk connector	1 x XLR balanced
Headphone connector	2 x 1⁄4″ TRS (stereo)
AES50 ports (Klark Teknik SuperMAC, 100 Mbit/s)	4
Snake (copper)	2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR
Snake (fibre)	2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR
CM1 expansion slots	2 x slots (CM1 module for AES50, DANTE, MADI and USB)
Word clock IN	BNC, accepts TTL level, 96 kHz square wave, impedance 75 Ohms
Word clock OUT	BNC, provides a TTL level, 96 kHz square wave
External (Ethernet) connector	Ethercon XLR
Monitor output	2 x HDMI (1920 x 1080p 59.94Hz/60Hz 16:9 & 720 x 480p 59.94Hz/60Hz 16:9 supported)
IEC mains socket with power switch	2

Displays

Display screen	21″ LCD high brightness 1920 x 1080 px, captive touchscreen, up to 10 simultaneous touches
Output meters (quantity 2)	20 segment -36 dBu to +21 dBu

Controls
