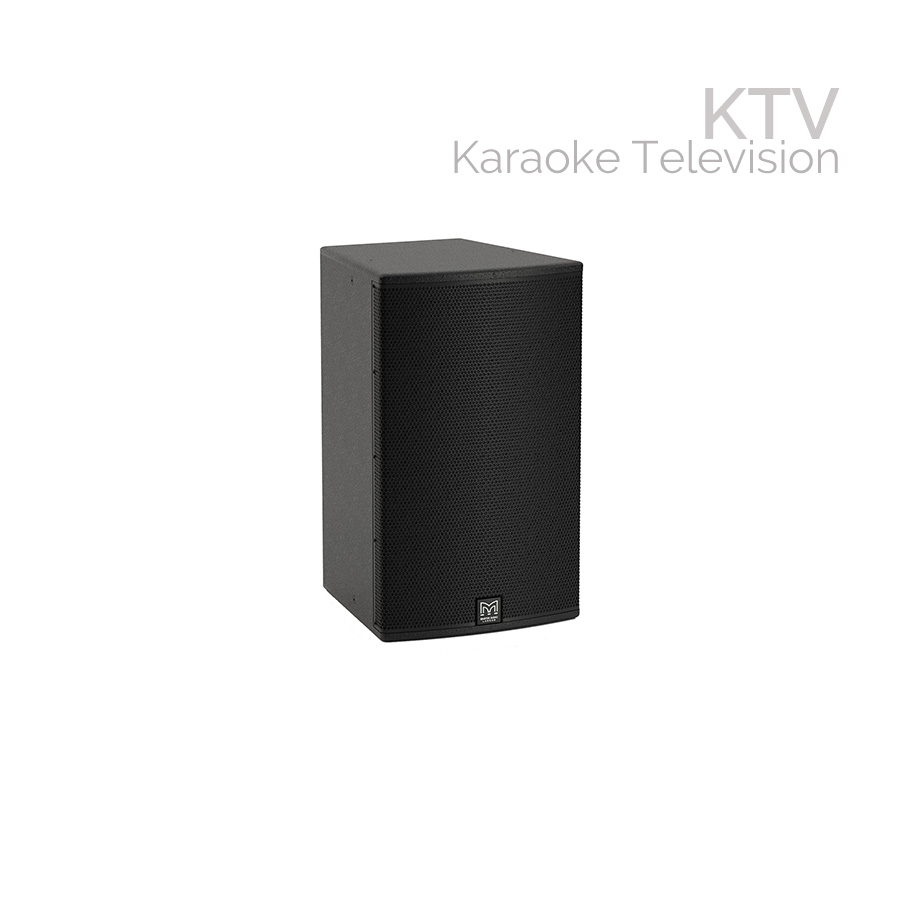

Martin Audio V10 Passive KTV Loudspeaker 10″ 500W
ลำโพงคาราโอเกะ KTV Martin Audio V10 เป็นลำโพงแบบ Compact, passive two-way system, ขนาดดอกลำโพง 10 นิ้ว เสียงแหลม 1 นิ้ว, รองรับกำลังขยาย 500W program, 1000W peak, 90° H x 50° V (user-rotatable), เหมาะสำหรับงาน KTV Karaoke Television
The V.10 is very compact, two-way passive loudspeaker designed for family KTV rooms which call for superior sound over short throw distances. It utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm.
It is capable of high output levels for its small size and its rotatable 90° x 50° HF horn provides extremely smooth coverage. Equal horizontal and vertical horn mouth dimensions ensure its excellent directivity control is maintained in both planes.
The V.10’s trapezoid enclosure is constructed from 15mm engineered wood fibre and finished in a textured black paint. It is fitted with a cloth-backed protective steel grille and M8 inserts are provided for eyebolt suspension and installation.
Features:
- Full-range, passive two-way system
- KTV specific voicing
- Enhanced bass response from rear port
- LF driver with demodulating ring for distortion-free vocals
- User-rotatable horn
- Vertical and horizontal mounting option
- Cloth-backed perforated steel grille
- Trapezoid enclosure with textured finish
- 8Ω nominal impedance
- Internal crossover network with LF and HF driver protection
- Twin NL4 connectors
- Multiple M8 rigging inserts
