สายแลนสำเร็จรูป kordz PRO SlimCat CAT6 Patch Cords (2.00M)

kordz

สายแลนเข้าหัวสำเร็จรูป Patch Cord CAT6 kordz PRO SlimCat ความยาว 200 cm, Ultra-slim design with a 3.9mm cable diameter, Applicable Standards ANSI/TIA-568.2-D Category 6 IEC 11801 Class E, Conductors Stranded 28 AWG Oxygen Free Copper

Original price was: 270 ฿.Current price is: 216 ฿.

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
หมวดหมู่: ป้ายกำกับ:

คำอธิบาย

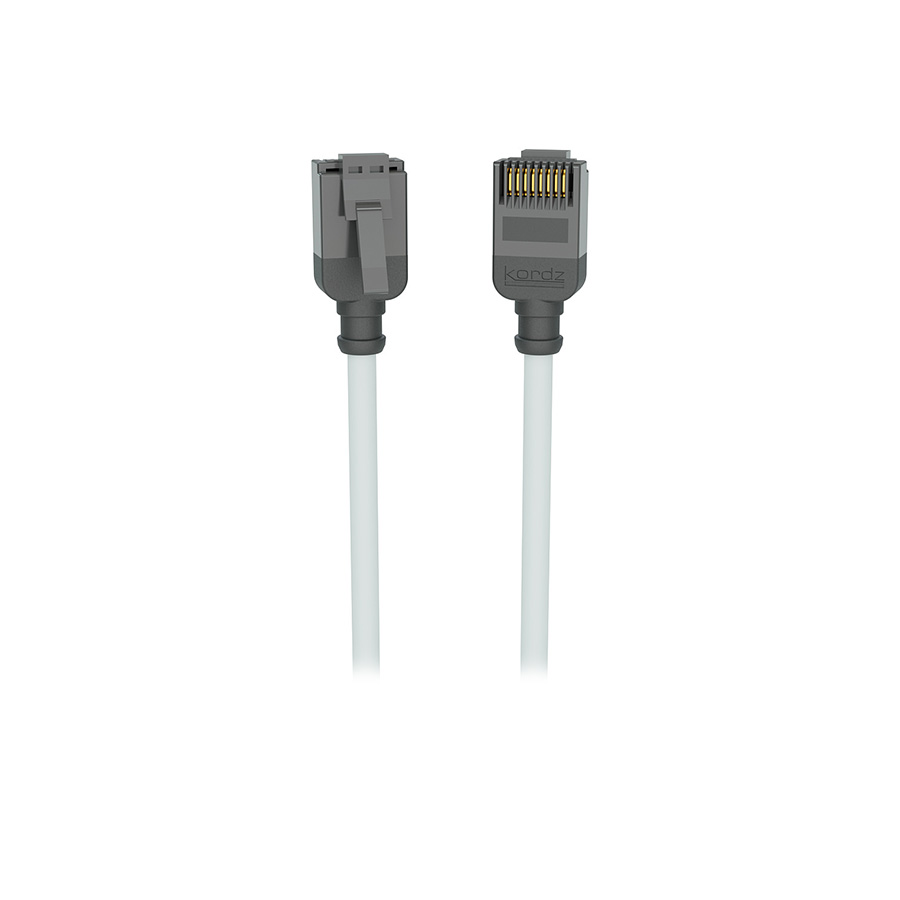

kordz PRO SlimCat CAT6 Patch Cords (2.00M)

สายแลนเข้าหัวสำเร็จรูป Patch Cord CAT6 kordz PRO SlimCat ความยาว 200 cm, Ultra-slim design with a 3.9mm cable diameter, Applicable Standards ANSI/TIA-568.2-D Category 6 IEC 11801 Class E, Conductors Stranded 28 AWG Oxygen Free Copper

Kordzify your Cat 6 networking projects with the Kordz PRO SlimCat Network Patch Cords, engineered to deliver all the power of Cat 6 in half the size. With a mere 3.9mm cable diameter, and a small profile nylon composite connector featuring the snap-proof latch that withstands 2,000 bend cycles,

These cables offer unprecedented space-saving advantages without compromising the guaranteed 1 Gbps and PoE++ 100W performance. Also available in installation-friendly and 100% recyclable, patent pending BeltPak 10-packs in black and blue,

Which won Top New Technology and Best of Show Awards at ISE 2024. Backed by the Kordz Lifetime Warranty, PRO SlimCat™ Network Patch Cords are the professional’s choice for networking installations.

Features:

  • High-performance patch cords that are individually tested and exceed all ANSI/TIA 568.2-D Category 6 standards.
  • Ultra-slim design with a 3.9mm cable diameter and small form-factor connector, ideal for space-conscious network installations.
  • Robust durability ensured by a patented connector design with composite nylon snap-proof latch that can withstand an impressive 2,000+ bend cycles.
  • Fully support IEEE802.3bt PoE++ 100W, making them suitable for power-hungry devices and applications.
  • Choose from 16 different lengths (0.15m to 30.0m) and 8 easy to identify colours to match your specific installation needs and aesthetics.
  • Available in 100% recyclable, installation-friendly Kordz BeltPak 10-packs in black and blue
  • Reliable connectivity backed by Kordz’s product performance guarantee and a lifetime warranty.

Specifications

Application Standards ANSI/TIA-568.2-D IEC11802
EN50173 PoE++ 80W
Performance Standard ≤ 10.0m – Category 6 Component Tested
> 10.0m – Category 6 Channel Tested
Wiring method T568-B
Certified Data Rate 1 Gbps (Gigabit ethernet)
Supported Data Rate ≥ 1 Gbps (Gigabit ethernet)

Certified Bandwidth: 1 to 250 MHz

Certified Bandwidth 1 to 250 MHz
Supported Bandwidth ≥ 250 MHz
MECHANICAL
Cable Diameter 28 AWG, 3.9mm/0.15ӯ
Maximum Cable Pulling Tension 80 kgf/cmÇ
Cable to Plug Tensile Strength TBC
Cable Bend Radius 11.7mm | 0.46in
Recommended Total Mounting Depth 27.7mm | 1.09in
Mating Cycles (max.) 1000 cycles
Temperature range UL Temp rating – 75ºC
CONSTRUCTION
Conductors 28 AWG Oxygen Free Stranded Copper
Conductor Insulation Polyolefin
Shielding Not Applicable
Cable Jacket Material UL CM-rated PVC
Connector Material Nylon
Contact Type 3-prong for solid/stranded conductors
Strain Relief Injection-moulded PVC
ELECTRICAL CHARATERISTICS
Conductor Resistance 223Ω/km
Insulation Resistance 10MΩ min @100V DC

Downloads

ดาวน์โหลด Data Sheet kordz SlimCat CAT6
