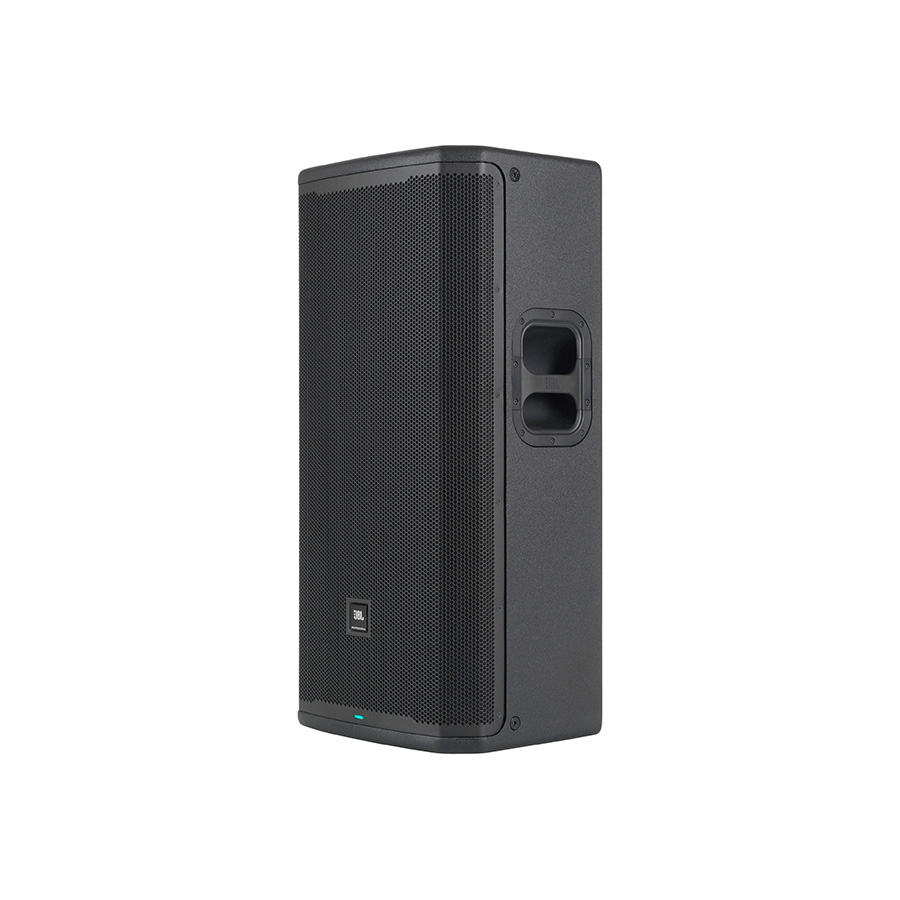

ตู้ลำโพง JBL PRX935 3-way Powered Speaker with Bluetooth

JBL

ตู้ลำโพง 3 ทางแบบมีแอมป์ขยายในตัวพร้อมบลูทูธ JBL PRX935 ขนาดดอกลำโพง 15″ Woofer + 6″ Midrange + 1.5″ Compression Drivers, มีกำลังขยาย 2000 watts peak/1000 watts RMS Class D amplification, Extensive DSP Control over Parameters, Mobile App Compatible

123,600 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
หมวดหมู่: ป้ายกำกับ: Brand:

คำอธิบาย

JBL PRX935 3-way Powered Speaker with Bluetooth 15″ 2000W

ตู้ลำโพง 3 ทางแบบมีแอมป์ขยายในตัวพร้อมบลูทูธ JBL PRX935 ขนาดดอกลำโพง 15″ Woofer + 6″ Midrange + 1.5″ Compression Drivers, มีกำลังขยาย 2000 watts peak/1000 watts RMS Class D amplification, Extensive DSP Control over Parameters, Mobile App Compatible

The JBL PRX935 takes professional portable PA performance to a new level with advanced acoustics, comprehensive DSP, unrivaled power performance and durability, and complete BLE control via the JBL Pro Connect app. This powered, three-way, single 15-inch system delivers exceptional mid-frequency range performance and vocal clarity at maximum volume. This makes it an ideal system for houses of worship, corporate A/V providers, or anyone that needs to provide powerful, room-filling sound.

PRX935’s class-leading DSP package, accessible via an onboard color LCD or the JBL Pro Connect app, features 12-band parametric EQ for system tuning; integrated dbx Automatic Feedback Suppression, and more. The JBL Pro Connect app empowers Android or iOS mobile device control over mixer and DSP functions, including management of a wide range of settings and effects. Up to 10 JBL Pro Connect app-enabled systems and speakers can be controlled.

Features:

  • 2,000W Class D amplifier delivers a muscular 136.1dB maximum SPL
  • 15-in. woofer, 6-in. midrange driver, and 1.5-in. tweeter yield a clean 40Hz–20kHz frequency response
  • Updated Image Control Waveguide delivers room-filling 90° x 50° dispersion
  • FEA-flared port design minimizes air noise and distortion
  • Houses cutting-edge DSP derived from dbx’s acclaimed DriveRack processors
  • Optimized presets make subwoofer integration a simple, straightforward affair
  • Color LCD screen provides intuitive system configuration
  • Comprehensive system control via the JBL Pro Control app
  • Robust 18mm birch cabinet with optimized bracing

Specifications

Enclosure Type
Bass-Reflex Loudspeaker
Total Power Capacity
2000 W Peak
Amplifier Class
Class-D
Drivers
HF Driver
1x 1.5″ / 38.1 mm Polymer Compression Driver
MF Driver
1x 6″ / 152.4 mm Cone
MF Voice Coil
1.5″ / 38.1 mm
LF Driver
1x 15″ / 38.1 cm Woofer
LF Voice Coil
3″ / 76.2 mm
Magnet
HF: Neodymium
MF: Ferrite
LF: Ferrite
Frequency Range
40 Hz to 20 kHz -10 dB
Frequency Response
46 Hz to 18 kHz -3 dB
Maximum SPL
136.1 dB (Peak)
Coverage Angle
90° H x 50° V
Gain Range
Line Input: 0 dB to +36 dB
Aux Input: 0 dB to +12 dB
I/O Impedance
Input: 100 Kilohms (Balanced)
Audio I/O
2x Combo XLR-1/4″ TRS Mic/Line Input
1x 1/8″ / 3.5 mm TRS Line Input
2x XLR 3-Pin Line Thru
1x XLR 3-Pin Mix Output
Network I/O
No
USB I/O
No
Wireless Connectivity
Bluetooth
Bluetooth
Yes
Mobile App Compatible
Yes: Android & iOS
App Name: JBL Pro Connect
Functionality: Adjust Settings, Remote Control, Setup
Crossover
542 Hz
2.1 kHz
EQ
No
Parametric EQ
Yes
Semi-Parametric EQ
No
Filters
No
Dynamic Processing
Limiter
Alignment Delay
Up to 180 ms
Phase Adjustment
Yes
Digital Signal Processing
Venue Settings, Voicing Modes
AC Input Power
100 to 230 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Color
Black
Mounting
1 x 1.4″ / 36 mm Pole Socket (Bottom)
8 x M10 Fly Point
Handles
1x Each Side
Cooling
Convection
Environmental Resistance
No
Construction Material
Plywood, Stainless Steel Grille
Dimensions
36.9 x 17.5 x 17.1″ / 93.7 x 44.5 x 43.4 cm
Weight
80.6 lb / 36.6 kg

Downloads

ดาวน์โหลด Data Sheet PRX935
