electro-voice_eviva_18p_subwoofer

ตู้ลำโพงซับเบส Electro-Voice EVIVA 18P Active Subwoofer 18″

Electro-Voice

ตู้ลำโพงซับวูฟเฟอร์แบบมีกำลังขยายในตัว Electro-Voice EVIVA 18P ขนาดดอกลำโพง 18 นิ้ว มีกำลังขยาย 1000 watt power rating with large, low-turbulence slot port provide high 132 dB maximum SPL, For Live Stage, Theater, DJ Setups

38,500 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

คำอธิบาย

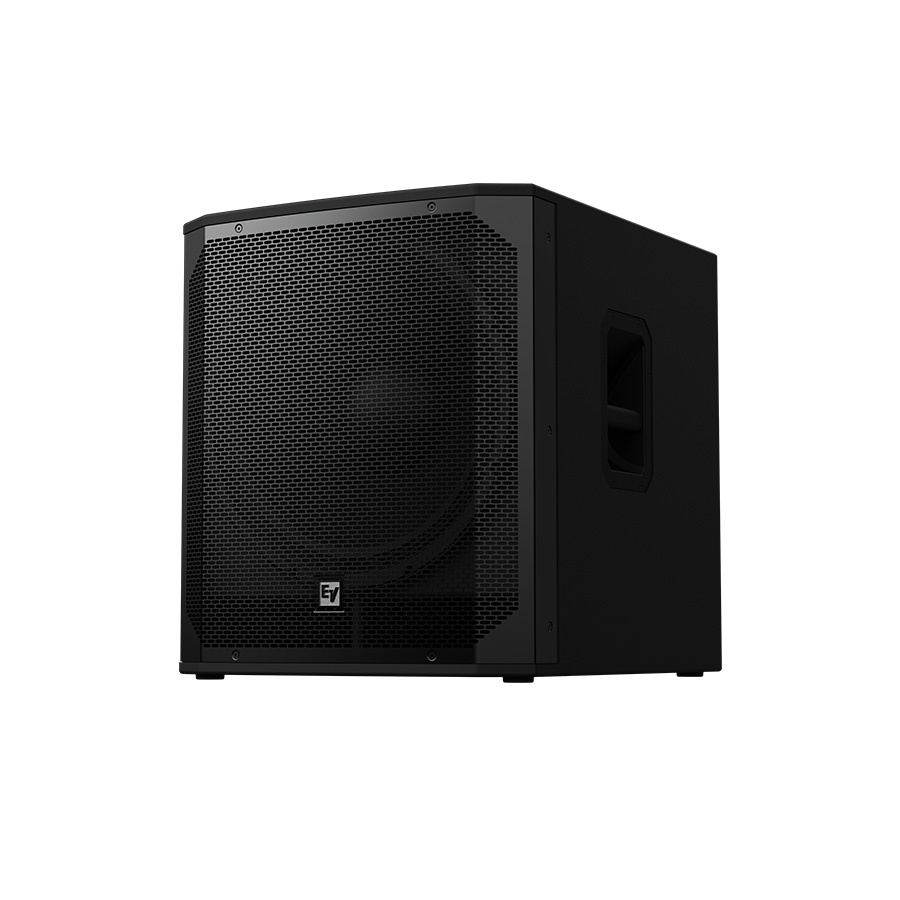

Electro-Voice EVIVA 18P Active Subwoofer 18″ 1000W

ตู้ลำโพงซับวูฟเฟอร์แบบมีกำลังขยายในตัว Electro-Voice EVIVA 18P ขนาดดอกลำโพง 18 นิ้ว มีกำลังขยาย 1000 watt power rating with large, low-turbulence slot port provide high 132 dB maximum SPL, For Live Stage, Theater, DJ Setups

The EVIVA 18SP is an 18” powered portable subwoofer that brings Electro-Voice quality sound and durability to aspiring musicians, DJs, and small venues. It has been designed for rapid deployment, so its user-friendly control and easy connectivity combine well with a lightweight design to ensure single-person setup is possible.

Weighing just 30.7 kg, EVIVA 18SP delivers deep, powerful bass across the audience area. EVIVA 18SP has a frequency range of 38 Hz – 200 Hz (-10 dB) and a maximum SPL of 132 dB delivering class-leading low frequency performance. The EVIVA 18SP offers two XLR/TRS combo jack line inputs as well as a pair of XLR pass throughs.

The robust 18” plywood subwoofer features a 1000 W amplifier with 2-channel analog input section. The intuitive control panel features a knob for level adjustment and switches to change the mode between MUSIC and LIVE, low pass between 100 Hz EVIVA 12P/15P and 150 Hz, and polarity between NORMAL and REVERSE.

Features:

  • Signature Electro-Voice sound quality with selectable MUSIC/LIVE mode
  • 1000 watt power rating with large, low-turbulence slot port provide high 132 dB maximum SPL
  • Flexible line input connections and easy single-knob adjustment with dual-color input signal metering and peak detection
  • Painted plywood enclosure with recessed input panel to protect controls and connectors in transit
  • Universal mains voltage 100 V ~ 240 V auto-switching delivers reliable performance
  • Ergonomic, lightweight design with durable metal side handles, antiskid bottom feet and M20 threaded pole mount plate

Specifications

Frequency response (-3 dB) (Hz) 1 45 Hz – 150 Hz
Frequency range (-10 dB) (Hz) 1 38 Hz – 200 Hz
Maximum sound pressure level at a distance of 1 m (dB) 2,3 132 dB
Amplifier rating (W) 1000 W
Power consumption (V, Hz) 4 100 – 240 V~, 50 – 60 Hz, 0.6 – 0.4 A
LF transducer size (in) 18 in
LF transducer type WECA2188H woofer
LF transducer magnet material Ferrite
Crossover frequency (Hz) 100 Hz (default)
150 Hz (optional)
Connector type (2) XLR/TRS combo jack line in
(2) XLR pass through out
Enclosure 15 mm plywood, internally braced, with textured paint
Grille material Powder coated steel
Color Black
Dimensions (H x W x D) (mm) 597 mm x 520 mm x 620 mm
Dimensions (H x W x D) (in) 23.50 in x 20.47 in x 24.41 in
Shipping dimensions (H x W x D) (mm) 650 mm x 602 mm x 674 mm
Shipping dimensions (H x W x D) (in) 25.59 in x 23.70 in x 26.54 in
Weight (kg) 30.7 kg
Weight (lb) 67.6 lb
Shipping weight (kg) 36.9 kg
Shipping weight (lb) 81.3 lb

1 Full-space measurement using MUSIC DSP preset.
2 Half-space measurement using LIVE DSP preset and 150 Hz low pass.
3 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
4 Current rating is 1/8 power.

Downloads

ดาวน์โหลด Data Sheet EV EVIVA 18P
