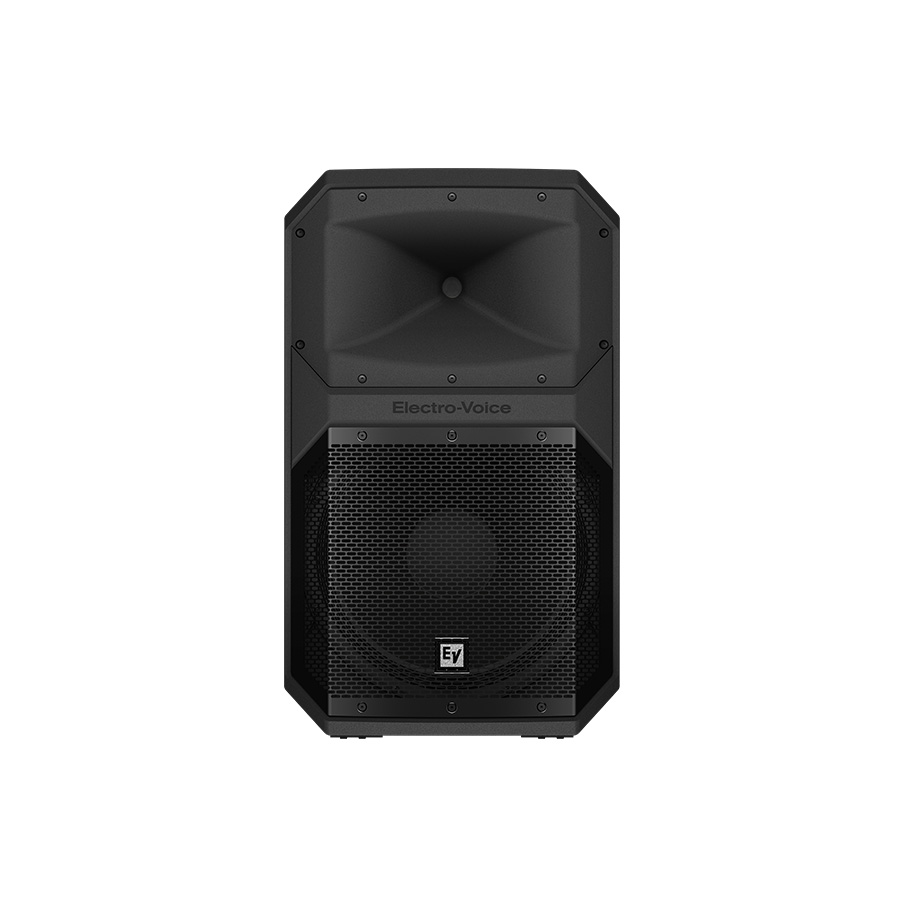

ลำโพง Electro-Voice EVIVA 15P Active Loudspeaker 15″

Electro-Voice

ตู้ลำโพง 2 ทางแบบมีกำลังขยายในตัว Electro-Voice EVIVA 15P ขนาดดอกลำโพง LF 15 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยาย 1000 watt rating with high 126 dB maximum SPL, Built-in Bluetooth® audio streaming, For Live Stage, Theater, DJ Setups

19,500 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

คำอธิบาย

Electro-Voice EVIVA 15P Active Loudspeaker 15″ 1000W

ตู้ลำโพง 2 ทางแบบมีกำลังขยายในตัว Electro-Voice EVIVA 15P ขนาดดอกลำโพง LF 15 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยาย 1000 watt rating with high 126 dB maximum SPL, Built-in Bluetooth® audio streaming, For Live Stage, Theater, DJ Setups

The EVIVA 15P is a 15” powered portable loudspeaker that brings Electro-Voice quality sound and components to aspiring musicians, DJs, and small venues. It has been designed for rapid deployment, so its user-friendly control and easy connectivity combine well with a lightweight design to ensure single-person setup is possible.

Weighing just 14.6 kg, EVIVA 15P offers a 90° x 60° (horizontal x vertical) coverage pattern, delivering clean, even sound across the audience area. EVIVA 15P has a frequency range of 45 Hz – 20 kHz (-10 dB) and a maximum SPL of 126 dB delivering a class-leading sonic performance.

It offers industry standard connectivity to make setting up any gig as fast as possible with two XLR combo jack mic/line inputs, an XLR mix output, and Bluetooth® audio streaming. Put through the same rigorous testing as every Electro-Voice loudspeaker, EVIVA 12P delivers a consistent performance that can be relied on every time.

Features:

  • Signature Electro-Voice sound quality with selectable MUSIC/LIVE mode
  • 1000 W power rating with high 126 dB maximum SPL
  • Flexible mic/line input connections and easy single-knob adjustment with dual color input signal metering and peak detection
  • Bluetooth® audio streaming with switchable mono/stereo mix output
  • Universal mains voltage 100 V ~ 240 V auto-switching delivers reliable performance
  • Ergonomic, lightweight design with side and top handles, bottom grab pocket and anti-skid bottom feet

Specifications

Frequency response (-3 dB) (Hz) 1 56 Hz – 17,000 Hz
Frequency range (-10 dB) (Hz) 1 45 Hz – 20,000 Hz
Maximum sound pressure level at a distance of 1 m (dB) 2, 3 126 dB
Coverage angle HxV (°) 90° x 60°
Amplifier rating (W) 1000 W
Power consumption (V, Hz) 4 100 – 240 V~, 50 – 60 Hz, 1.0 – 0.5 A
LF transducer size (in) 15 in
LF transducer type WECA2154H woofer
LF transducer magnet material Ferrite
HF transducer size (in) 1 in
HF transducer type DENA2504H compression driver
HF transducer diaphragm material Titanium-coated PEI
HF transducer magnet material Neodymium
Crossover frequency (kHz) 1.9 kHz
Connector type (2) XLR Combo mic/line input
(1) XLR mix output
Enclosure Composite
Grille material Powder coated steel
Color Black
Dimensions (H x W x D) (mm) 725 mm x 426 mm x 402 mm
Dimensions (H x W x D) (in) 28.54 in x 16.77 in x 15.83 in
Shipping dimensions (H x W x D) (mm) 762 mm x 485 mm x 455 mm
Shipping dimensions (H x W x D) (in) 30.00 in x 19.10 in x 17.91 in
Weight (kg) 14.6 kg
Weight (lb) 32.2 lb
Shipping weight (kg) 19.5 kg
Shipping weight (lb) 43.0 lb

1 Full-space measurement using MUSIC DSP preset.
2 Full-space measurement using LIVE DSP preset.
3 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
4 Current rating is 1/8 power.

Downloads

Downloads

ดาวน์โหลด Data Sheet EV EVIVA 15P
