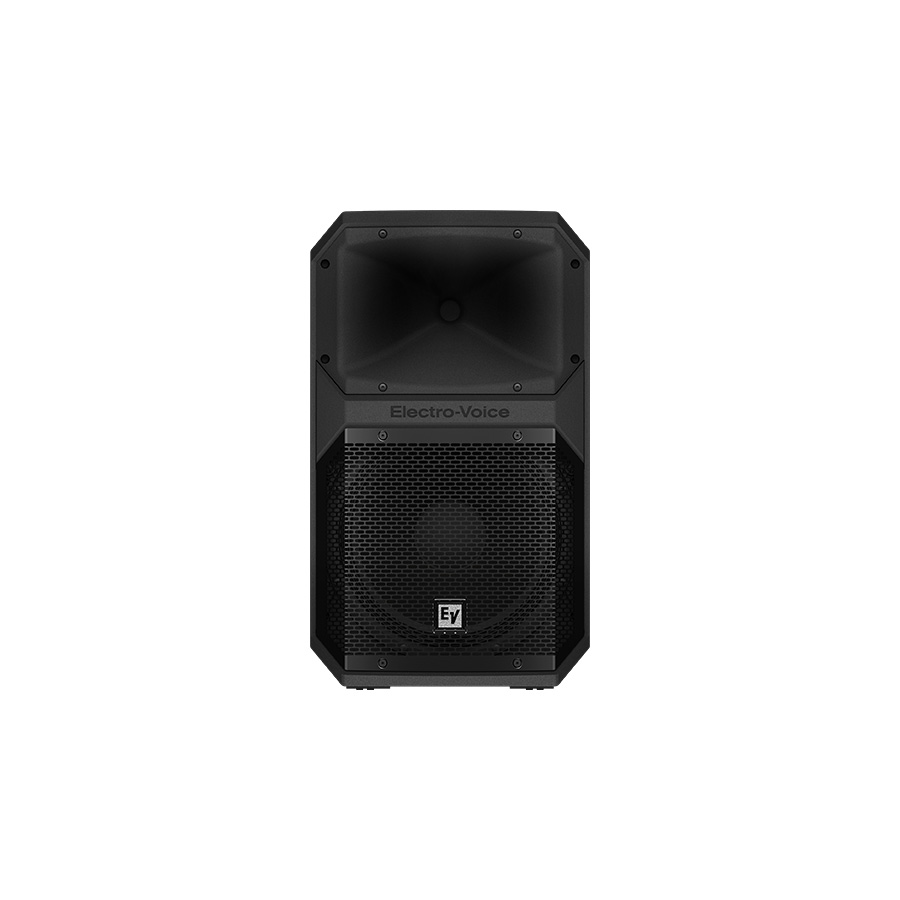

ลำโพง Electro-Voice EVIVA 12P Active Loudspeaker 12″

Electro-Voice

ตู้ลำโพง 2 ทางแบบมีกำลังขยายในตัว Electro-Voice EVIVA 12P ขนาดดอกลำโพง LF 12 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยาย 1000 watt power rating with high 125 dB maximum SPL, Built-in Bluetooth® audio streaming, For Live Stage, Theater, DJ Setups

16,900 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

คำอธิบาย

Electro-Voice EVIVA 12P Active Loudspeaker 12″ 1000W

ตู้ลำโพง 2 ทางแบบมีกำลังขยายในตัว Electro-Voice EVIVA 12P ขนาดดอกลำโพง LF 12 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยาย 1000 watt power rating with high 125 dB maximum SPL, Built-in Bluetooth® audio streaming, For Live Stage, Theater, DJ Setups

The EVIVA 12P is a 12” powered portable loudspeaker that brings Electro-Voice quality sound and durability to aspiring musicians, DJs, and small venues. It has been designed for rapid deployment, so its user-friendly control and easy connectivity combine well with a lightweight design to ensure single-person setup is possible.

Weighing just 12 kg, EVIVA 12P offers a 90° x 60° (horizontal x vertical) coverage pattern, delivering clean, even sound across the audience area. EVIVA 12P has a frequency range of 50 Hz – 20 kHz (-10 dB) and a maximum SPL of 125 dB delivering class-leading sonic performance.

It offers industry standard connectivity to make setting up any gig as fast as possible with two XLR combo jack mic/line inputs, an XLR mix output, and Bluetooth® audio streaming. Put through the same rigorous testing as every Electro-Voice loudspeaker, EVIVA 12P delivers a consistent performance that can be relied on every time.

Features:

  • Signature Electro-Voice sound quality with selectable MUSIC/LIVE mode
  • 1000 W power rating with high 125 dB maximum SPL
  • Flexible mic/line input connections and easy single-knob adjustment with dual color input signal metering and peak detection
  • Bluetooth® audio streaming with switchable mono/stereo mix output
  • Universal mains voltage 100 V ~ 240 V auto-switching delivers reliable performance
  • Ergonomic, lightweight design with side and top handles, bottom grab pocket and anti-skid bottom feet

Specifications

Frequency response (-3 dB) (Hz) 1 63 Hz – 18,000 Hz
Frequency range (-10 dB) (Hz) 1 50 Hz – 20,000 Hz
Maximum sound pressure level at a distance of 1 m (dB) 2, 3 125 dB
Coverage angle HxV (°) 90° x 60°
Amplifier rating (W) 1000 W
Power consumption (V, Hz) 4 100 – 240 V~, 50 – 60 Hz, 1.0 – 0.5 A
LF transducer size (in) 12 in
LF transducer type WECA2124H woofer
LF transducer magnet material Ferrite
HF transducer size (in) 1 in
HF transducer type DENA2504H compression driver
HF transducer diaphragm material Titanium-coated PEI
HF transducer magnet material Neodymium
Crossover frequency (kHz) 2.2 kHz
Connector type (2) XLR Combo mic/line input
(1) XLR mix output
Enclosure Composite
Grille material Powder coated steel
Color Black
Dimensions (H x W x D) (mm) 603 mm x 353 mm x 352 mm
Dimensions (H x W x D) (in) 23.74 in x 13.89 in x 13.86 in
Shipping dimensions (H x W x D) (mm) 645 mm x 410 mm x 410 mm
Shipping dimensions (H x W x D) (in) 25.39 in x 16.14 in x 16.14 in
Weight (kg) 12.0 kg
Weight (lb) 26.5 lb
Shipping weight (kg) 15.5 kg
Shipping weight (lb) 34.2 lb

1 Full-space measurement using MUSIC DSP preset.
2 Full-space measurement using LIVE DSP preset.
3 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
4 Current rating is 1/8 power.

Downloads

ดาวน์โหลด Data Sheet EV EVIVA 12P
