ออดิโออินเตอร์เฟส RCF TRK PRO1 USB Audio Interface

Name: ออดิโออินเตอร์เฟส RCF TRK PRO1 USB Audio Interface
Brand: RCF
SKU: 82811
Availability: InStock

ออดิโออินเตอร์เฟส RCF TRK PRO1, 1-in/2-out USB 2.0 Bus-powered Audio Interface, 24-bit/192kHz, with 1 Mic/Line/Inst Input, Balanced Output, Headphone Output, Preamp, 48V Phantom Power and Hi-Z Compatibility Mac/PC, Includes Steinberg Cubase LE DAW

8,380 ฿

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

สอบถามและสั่งซื้อสินค้า Order FAQS

หมวดหมู่: ออดิโออินเตอร์เฟส ป้ายกำกับ: RCF Brand: RCF

คำอธิบาย

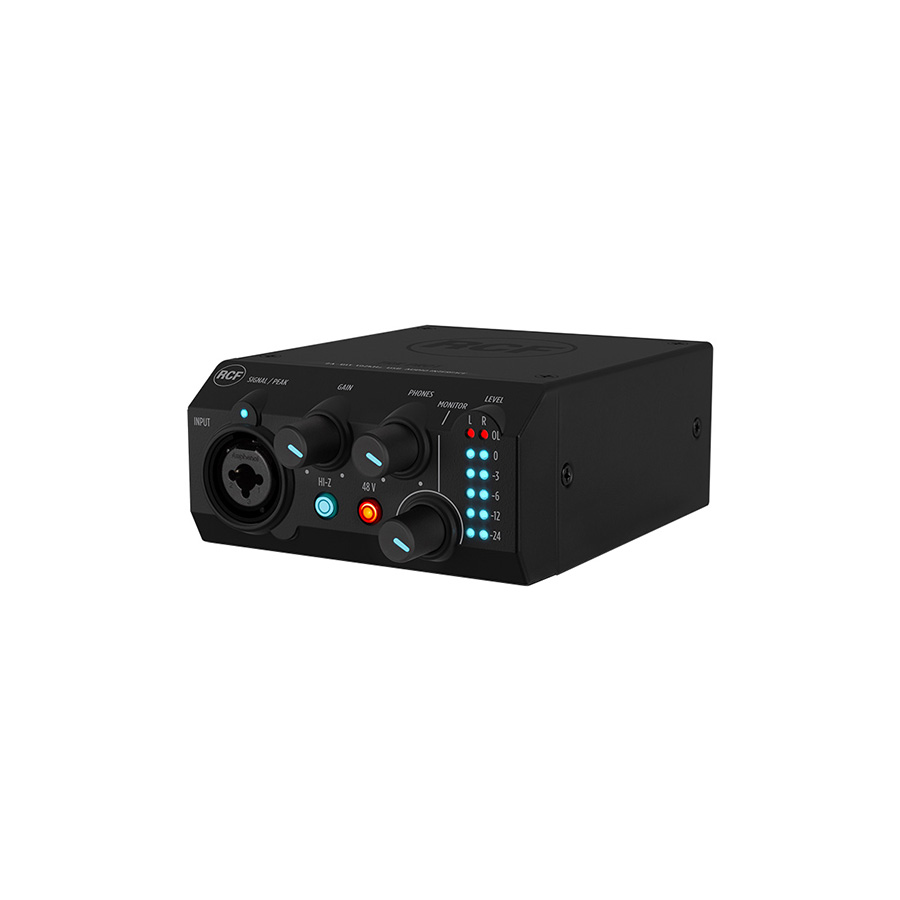

RCF TRK PRO1 USB Audio Interface

RCF TRK PRO1 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments.

The input signal can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or any other analog audio device.

Features:

1 In 2 Out USB 2.0 Bus-Powered Audio Interface
Up to 24-Bit/192kHz
1 Mic and Instrument/line Combo input
High-quality preamp
Balanced Output
Independent headphone volume control
Robust Metal Case
Perfect for RDNet Measures
48V Phantom Power Supply
Independent Gain Control with Signal-Peak LED

Specifications

Channels of I/O	No
Built-In DSP	No
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	1
Built-In Microphone	No
Input Level Adjustment	1x Knob

Signal Processing

Pad	No
High-Pass Filter	No
Solo/Mute	No

Connectivity

Analog Audio I/O	1x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 1x 1/4″ TRS Unbalanced Headphone Output (Front Panel) 2x 1/4″ TRS Balanced Monitor Output
Phantom Power	48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O	No
Host Connection	1x USB-B (Class-Compliant)
Host Connection Protocol	USB 2.0
USB (Non-Host)	No
Sync I/O	No
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Wireless	No

Performance

Frequency Response	Combo XLR-1/4″ Mic, Line, Hi-Z Inputs: 20 Hz to 20 kHz
Maximum Input Level	Combo XLR-1/4″ Mic Inputs: +9 dBu (Balanced) Combo XLR-1/4″ Line Inputs: +20 dBu (Balanced) Combo XLR-1/4″ Hi-Z Inputs: +10 dBu (Unbalanced)
Headphone Output Power	1/4″: 114 mW into 500 Ohms (Unbalanced)
Impedance	Combo XLR-1/4″ Mic Inputs: 3.5 Kilohms (Balanced, Mic Level) Combo XLR-1/4″ Line Inputs: 15 Kilohms (Balanced, Line Level) Combo XLR-1/4″ Hi-Z Inputs: 1 Megohm (Unbalanced) Combo XLR-1/4″ Headphone Outputs: < 10 Ohms (Unbalanced)
Dynamic Range	Combo XLR-1/4″ Analog/Mic/Line/Hi-Z Inputs: 107 dBu (A-Weighted) 1/4″ Analog/Monitor Outputs: 107 dB (A-Weighted)
THD+N	Combo XLR-1/4″ Mic/Line Inputs: < 0.0011% (20 Hz to 20 kHz, at -1 dBFS) Combo XLR-1/4″ Hi-Z Inputs: 107 dB (A-Weighted) 1/4″ Monitor Outputs: < 0.0012% (20 Hz to 20 kHz, at -1 dBFS)
EIN	Combo XLR-1/4″ Mic Inputs: < -120 dB

Digital Audio

Sample Rates	USB-A Output: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (AD/DA Conversion, Input/Output, Mac and PC, Playback, Record)
Sample Rate Conversion	No
Bit Depths	16 / 24-Bit (AD/DA Conversion, Recording, Playback)
Latency	Zero-Latency Direct Monitoring
Sync Sources	No
