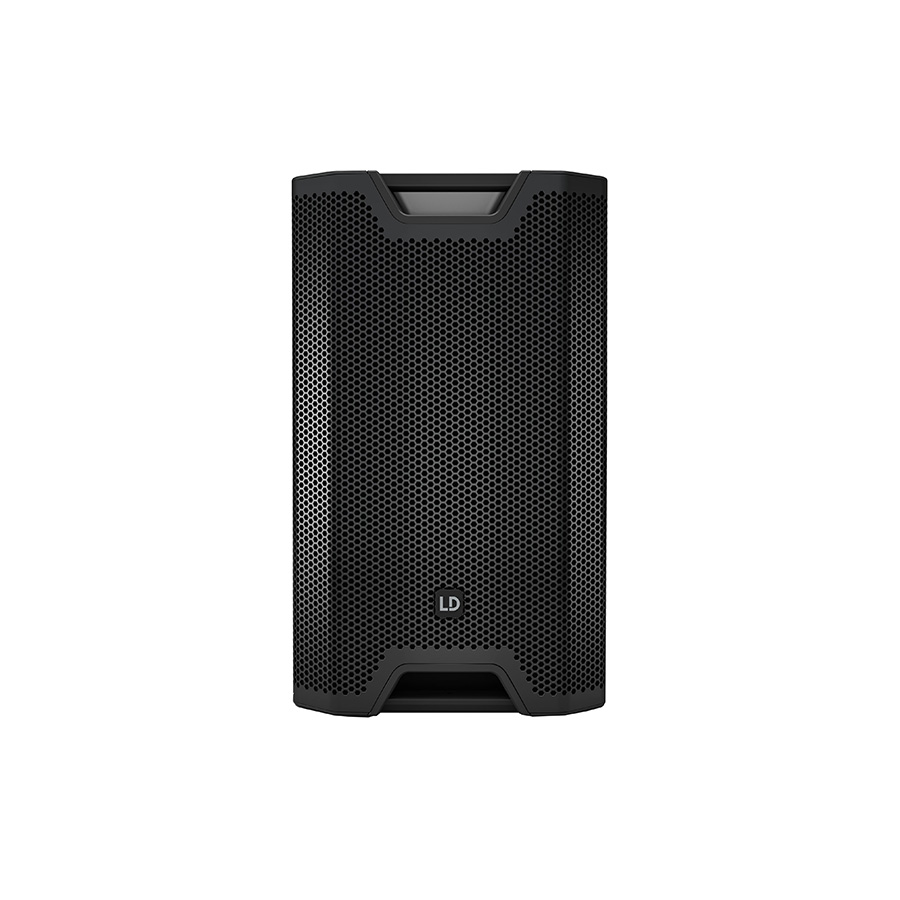

ลําโพง LD System ICOA 15A BT Powered Coaxial Loudspeaker

Name: ลําโพง LD System ICOA 15A BT Powered Coaxial Loudspeaker
Brand: LD System
SKU: 82395
Availability: InStock

ลำโพงแบบมีกำลังขยายในตัว LD System ICOA 15A BT เป็นลำโพงแบบ Full Range ขนาดดอกลำโพง 15นิ้ว Coaxial มีกำลังขยาย 300 W RMS, 600 W Program, 1200 W Peak, DynX DSP 4 Presets, 3-Band EQ, Delay, Bluetooth 4.0 Audio Streaming

Original price was: 28,500 ฿.Current price is: 22,800 ฿.

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

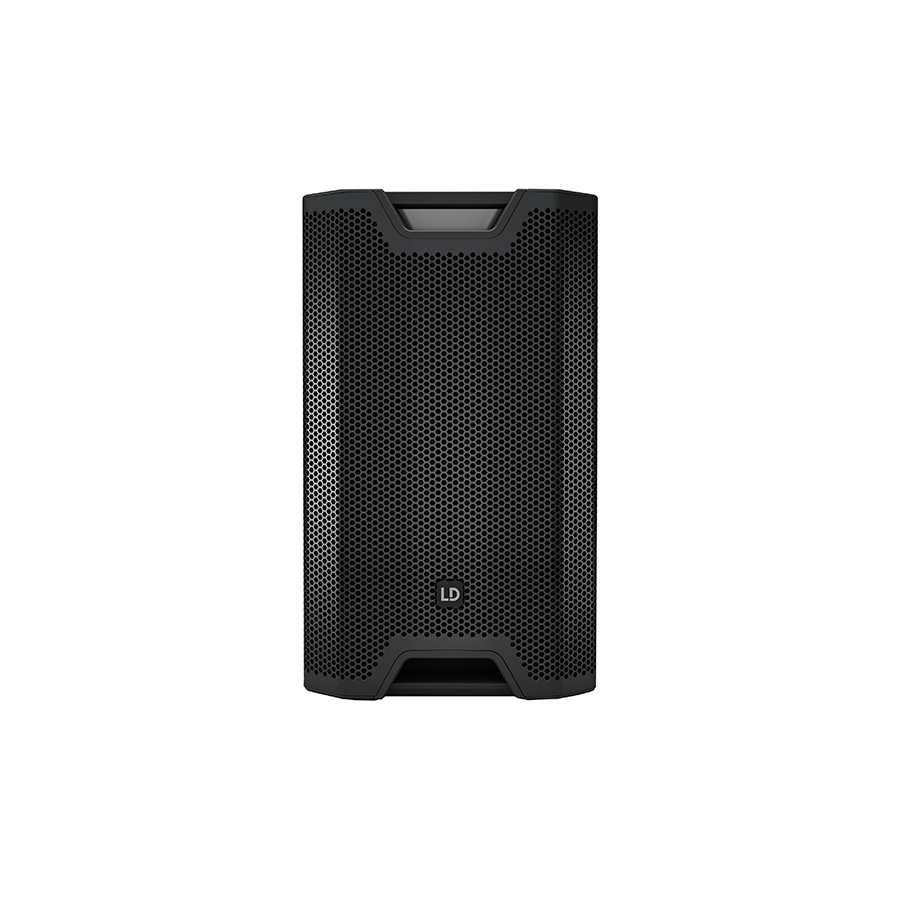

ICOA 12A BT

21,200 บาท

สอบถามและสั่งซื้อสินค้า Order FAQS

หมวดหมู่: ลำโพงแบบมีกำลังขยายในตัว ป้ายกำกับ: LD System Brand: LD System

คำอธิบาย

LD System ICOA 15A BT Powered Coaxial Loudspeaker 15″ 1200W

LD Systems ICOA 15 A is a well-rounded 15″ powered coaxial speaker that features a rotating, BEM-optimized CD horn and extensive precisely calibrated DynX DSP presets, making it a great choice for musicians, bands, entertainers, and dance schools. The speaker provides outstanding bass reproduction without the need for a subwoofer.

The integrated 1200W (peak) Class-D amplifier drives the 15″ woofer and 1″ high-frequency driver, which combine to offer a frequency response of 48 Hz to 20 kHz and a maximum SPL of 128 dB. The speaker can be used vertically or horizontally, thanks to the rotatable CD horn.

The bottom of the speaker includes a dual pole cup that allows you to deploy at 0 or 5° for better coverage of seated patrons. The six fly points allow you to fly the speaker in any orientation.

Features:

300W RMS/1,200W peak Class D power amp boasts a 128dB maximum SPL
15-inch woofer and 1-inch coaxial tweeter yield a 48Hz–20kHz frequency response
BEM-optimized CD horn offers flexible use in both vertical and horizontal orientations
Proprietary DynX DSP ensures distortion-free sound at maximum volume
4 intuitive sound presets and a 3-band EQ supply fast, user-friendly sound adjustment
Delay line function compensates for distances up to 32 feet
2 mic/line input channels include individual gain controls and a mono mix output
Bluetooth connectivity allows you to stream audio wirelessly from your smart device
36mm dual-tilt stand attachment facilitates 0–5° tilt angles and a 55° monitor angle
Multiband limiter, over-voltage, over-current, and thermal overload protection circuits
Shock-resistant front grille offers optimal protection for the drivers
6 x M10 fly points and 4 aluminum handles ensure simplified installation and transport

Specifications

Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	1200 W Peak 600 W Program 300 W RMS
Amplifier Class	Class-D

Drivers

HF Driver	1 x 1″ / 25.4 mm Rotatable Horn
HF Voice Coil	1.4″ / 35.6 mm
MF Driver	No
LF Driver	1x 15″ / 381 mm
Magnet	Ferrite

Performance

Frequency Response	48 Hz to 20 kHz
Maximum SPL	128 dB
Coverage Angle	90° H x 50° V
Protections	DC Fault, Output Limiter, Short Circuit, Thermal

Connectivity

Audio I/O	2x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Mic/Line Input 1x 1/8″ / 3.5 mm TRS Female Unbalanced Line Input 1x XLR 3-Pin Male Balanced Line Output
Network I/O	No
USB I/O	No
Wireless Connectivity	No
Bluetooth	No
Mobile App Compatible	No

Signal Processing

Crossover	2 kHz
EQ	Yes
Parametric EQ	No
Semi-Parametric EQ	No
Filters	No
Dynamic Processing	Multiband Limiter
Alignment Delay	Yes
Phase Adjustment	No
Digital Signal Processing	24-Bit DSP: Venue Settings
Maximum Sampling Rate	48 kHz / 24-Bit

Power

AC Input Power	100 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V)
AC Power I/O	1x IEC Input
Power Consumption	150 W

Physical

Color	Black
Mounting	6 x M10 Fly Point 2 x 1.4″ / 36 mm Pole Socket (Dual Angle, Bottom)
Mounting/Monitor Angle	55° (As Floor Wedge/Monitor)
Handles	4
Environmental Resistance	No
Construction Material	Polypropylene
Operating Conditions	32 to 104°F / 0 to 40°C up to 80% Humidity
Dimensions	27.4 x 16.4 x 16.3″ / 69.5 x 41.6 x 41.5 cm
Weight	53.6 lb / 24.3 kg
